Changzhou Fengguo Jin’e Cable co .,Ltd. was established in 2008, specializes in manufacturing extra-flexible silicone rubber wire,silicone high voltage wire, silicone power wire, silicone heating wire, silicone shielding wire, silicone medical wire, fluoroplastics wire, new energy high temperature wire, special high temperature wire that comply with UL, VDE, and CCC. Besides, our company has specially set up wire processing workshops and dust-free workshops to provide customers with well processed wire group or wire harness for batteries, brushes, electric adjustment, steering gear,all kinds of household appliances, JST, AMP, connectors, plugs, medical devices etc.
We strictly follows ISO9001 international standard to develop and implement quality management system, and successfully passed ISO9001 certification in 2009, obtained UL certification (certification number: E339716) in 2010 and ISO14001 certificate in July 2022. And Successfully passed IATF16949 automotive quality management system in January 2023. Insists on the business philosophy of “quality-oriented, innovation and development, creating value together” and establishes the tenet that “the survival of our enterprise is determined by quality” to provide customers with competitive and qualified products on time.

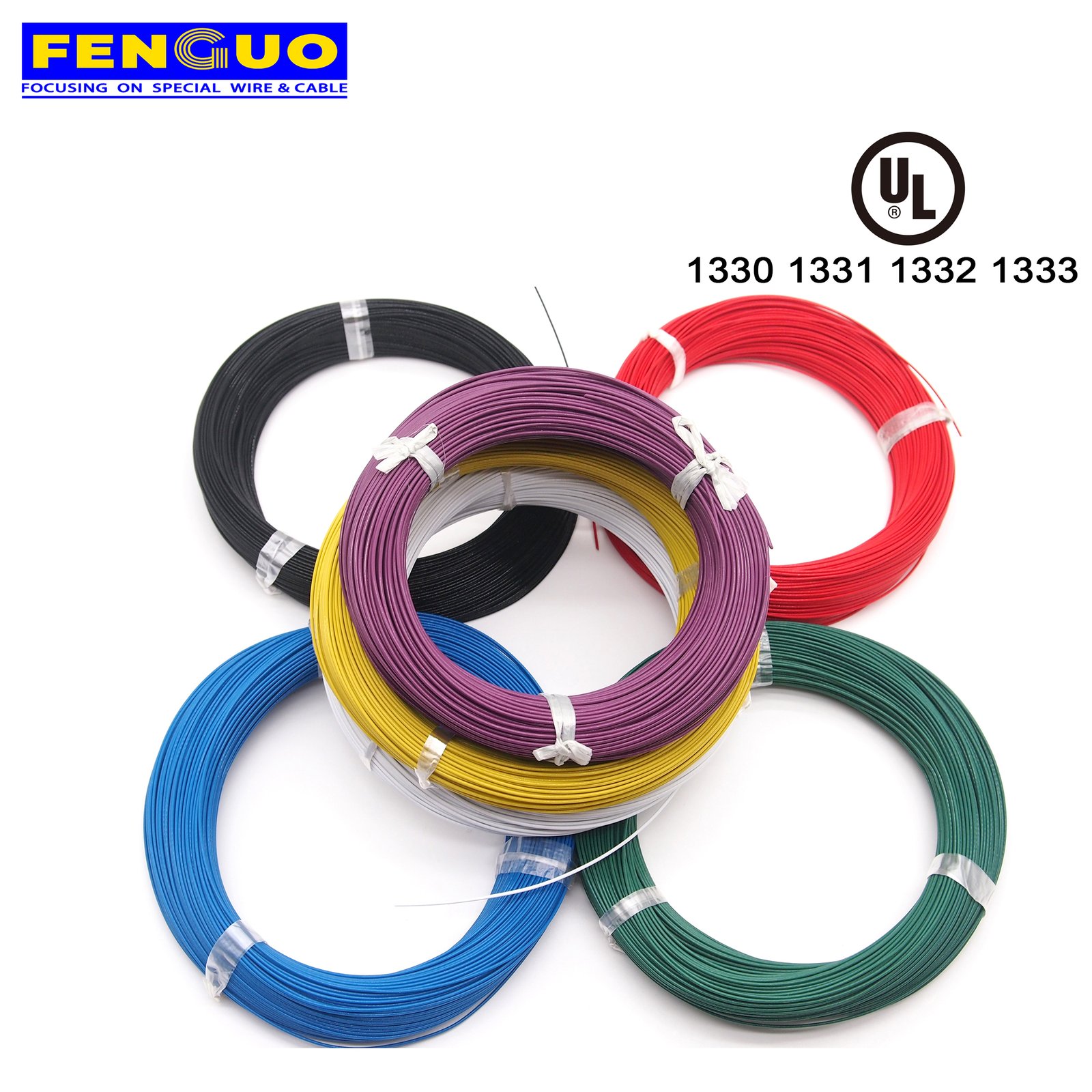

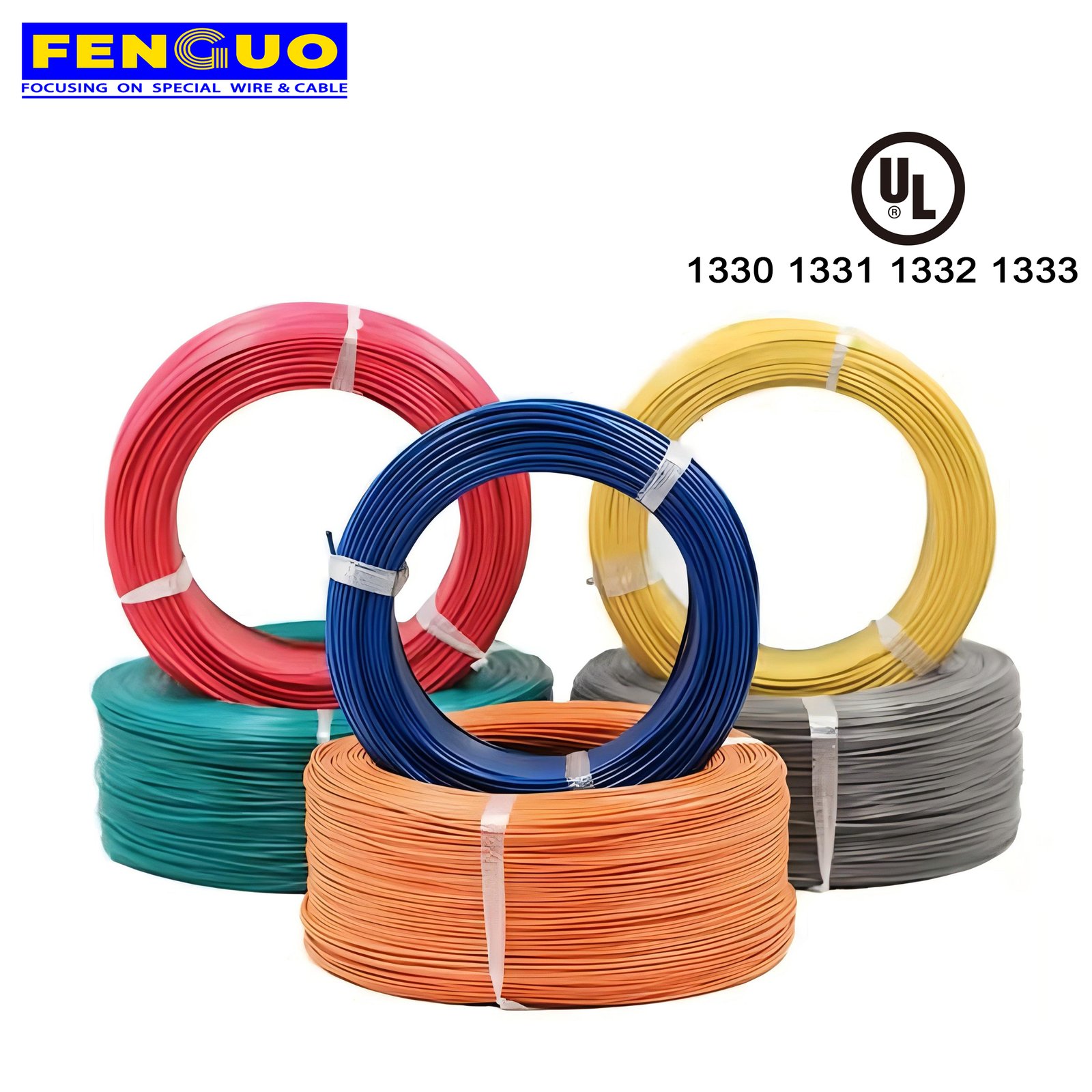

—Specification Of UL1330 1331 1332 1333 FEP Fluoroplastic Wire—
| Model NO. | UL1330 1331 1332 1333 | Material Shape | Round Wire |
| Certification | ISO9001,RoHS UL,ISO14001,Reach | Brand | / |
| Nominal Voltage | 300V | Temperature Range | -100°℃~+150°0 |
| Testing Voltage | 2500V | O.D.Tolerance | ±0.1mm |
| 1.Colors | White-Blue-Red-Black-Brown- Yellow | 2.Colors | Green-Transparent-Yellow/Green |
| Transport Package | 100m/Coil;200m/Coil;305m/Coil; 610m/Coil | Specification | 10#12#14#16#18#20#22#24#26 #28#30 |
| Trademark | 7 | Origin | Dongguan China |
| HS Code | 8544492100 | Production Capacity | 500000m/Week |
—Dimensions—
| Conductor | Insulator | Elecrical Characteristic | Packing | ||||
| AWG | Conductor Construction No.xmm | Diameter mm | Insulator Thinkness mm | Over diameter mm | Realst.max Cuc,c20°C Ohm/km | Permissible Ampacity 20°C-AMR | Mt/coils |
| 30 | 1/0.250 | 0.25 | 0.20 | 0.65 | 376.96 | 1.27 | 610 |
| 28 | 1/0.310 | 0.31 | 0.25 | 0.81 | 237.25 | 2.02 | 610 |
| 26 | 7/0.160 | 0.46 | 0.46 | 1.38 | 148.94 | 3.22 | 305 |
| 19/0.100 | 0.50 | 0.46 | 1.42 | 148.94 | 3.22 | 305 | |
| 24 | 7/0.200 | 0.61 | 0.46 | 1.53 | 93.25 | 5.15 | 305 |
| 19/0.120 | 0.60 | 0.46 | 1.52 | 93.25 | 5.15 | 305 | |
| 22 | 7/0.250 | 0.76 | 0.46 | 1.68 | 55.00 | 8.73 | 305 |
| 19/0.150 | 0.76 | 0.46 | 1.68 | 55.00 | 8.73 | 305 | |
| 20 | 7/0.310 | 0.95 | 0.46 | 1.87 | 34.60 | 13.87 | 305 |
| 19/0.190 | 0.96 | 0.46 | 1.88 | 34.60 | 13.87 | 305 | |
| 18 | 7/0.390 | 1.19 | 0.46 | 2.11 | 21.80 | 22.02 | 305 |
| 19/0.235 | 1.18 | 0.46 | 2.10 | 21.80 | 22.02 | 305 | |
| 16 | 7/0.500 | 1.53 | 0.46 | 2.45 | 13.70 | 35.04 | 305 |
| 19/0.300 | 1.51 | 0.46 | 2.43 | 13.70 | 35.04 | 305 | |
| 14 | 19/0.370 | 1.86 | 0.50 | 2.86 | 8.62 | 55.68 | 200 |
| 12 | 19/0.460 | 2.32 | 0.50 | 3.32 | 5.43 | 88.40 | 100 |
| 10 | 37/0.430 | 3.10 | 0.50 | 4.10 | 3.41 | 140.76 | 100 |
—Packing For Shipment—
—Our factory—
—FAQ—
Q1:l didn’t find my needed model in this page.
A1:We are factory. Ecatalog will emailed to you asap you contact us.Also, we supply customization service. So, contact us!
Q2:How long is your delivery time?
A2:Generally it is 5-10 days if the goods are in stock. or it is 15-20days if the goods are not in stock, it is according to quantity.
Q3:Can l see the sample first before l place the real order ?
A3:Of course. We can offer little sample for testing quality and market.
Q4:How about MOQ ?
A4:0ur company has MOQ requirement, but we also accept small quantity.
Q5:What is your terms of payment ?
A5:Payment<=1000USD,100% in advance.Payment>=1000USD, 30% T/T in advance ,balance before shippment.
