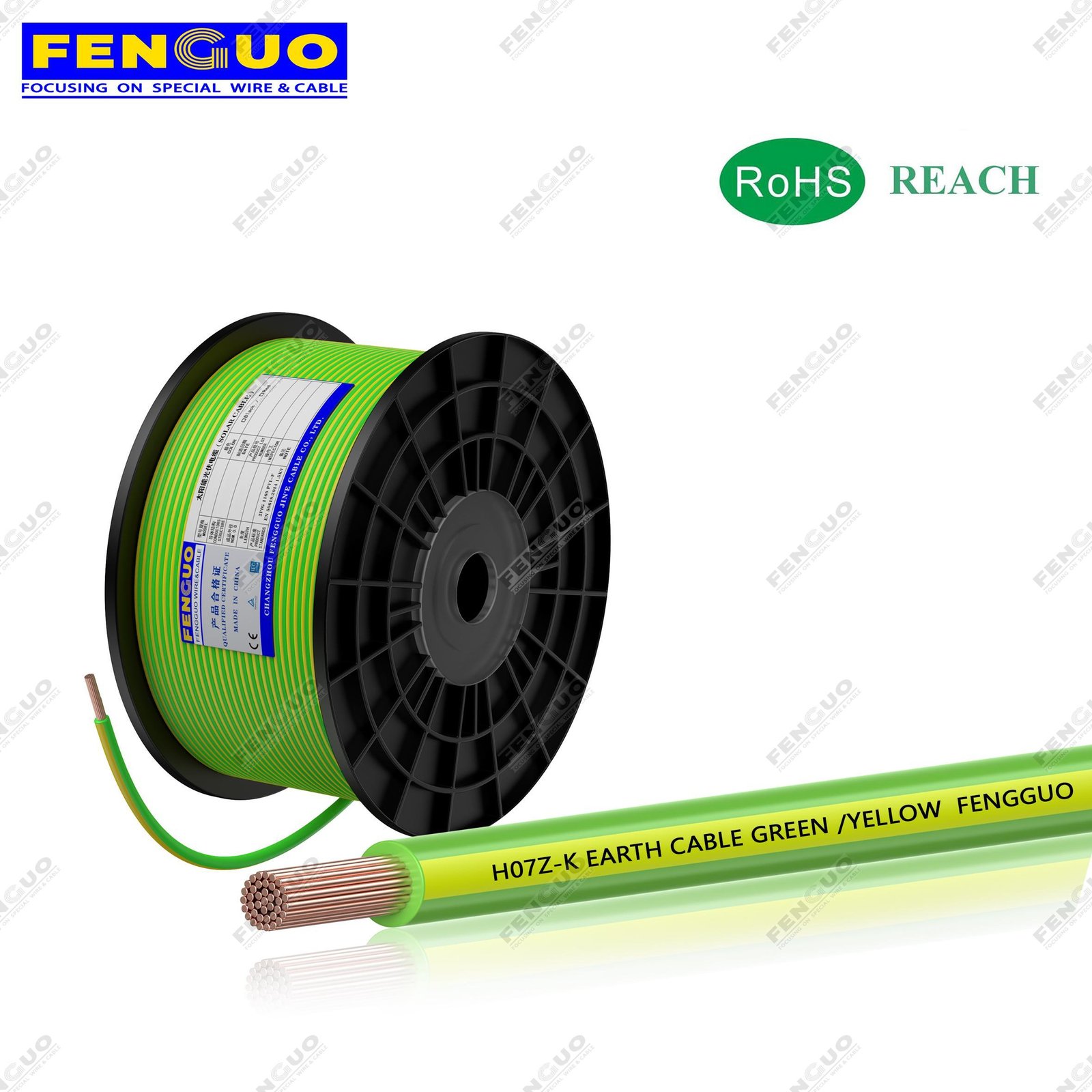

Outdoor H07Z-K Earth Cable Green /Yellow UV Resistant Cable For PV Ground Connection

FENGGUO® Outdoor H07Z-K Copper Core Solar Grounding is a highly flexible cable specially designed for connecting photovoltaic solar systems. It has obtained multiple international certifications such as TUV/UL/IEC/CE/RETIE and complies with UL4703, IEC62930, and EN50618/CPR standards. It is suitable for many different solar power fields such as large-scale solar power stations, rooftop solar power stations, and water-surface floating power stations. This versatile solar cable is designed to meet the different needs of the solar industry. It is suitable for various harsh indoor and outdoor environments such as roofs, deserts, lakes, seasides, and mountains (climates with high temperatures, high humidity, and high salt content). Stable and good connection performance ensures the long-term safe operation of the photovoltaic system, effectively reducing the failure rate and later operation costs of the photovoltaic system. Get your PV installations up and running efficiently and safely. Achieving sustainable and successful PV profitability.

—Specification Of Outdoor H07Z-K Copper Core Solar Grounding—

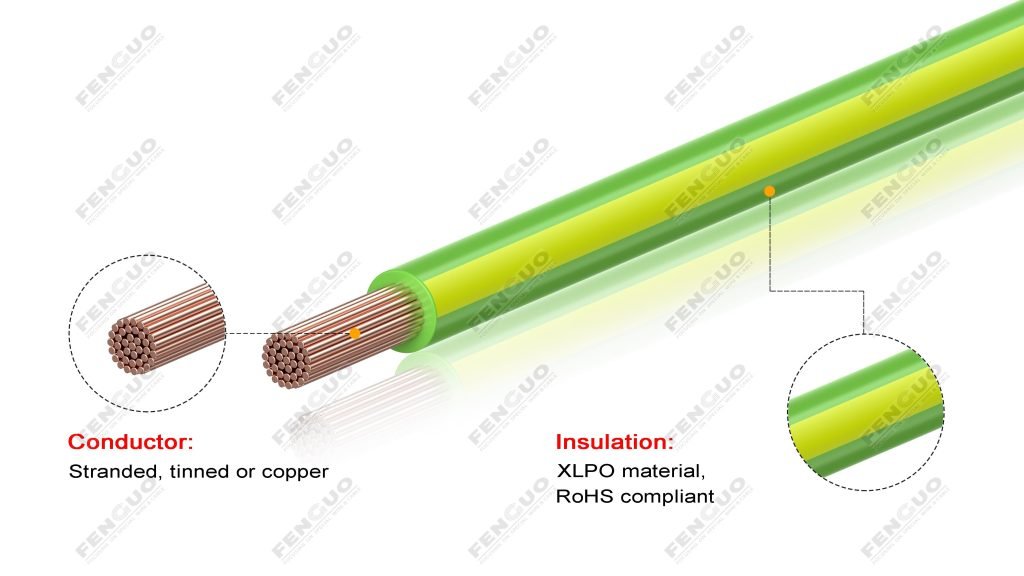

Conductor Material	Tinned copper	Rated Voltage(V)	AC 450/750V,DC 1000V
Insulation Material	XLPO	Flame retardant test	Single vertical combustion
Color	Yellow/green	Smoke Emission	Based on UNE-EN 60754-2 and IEC 60754-2.
Spark Test(KV)	6(AC) No breakdown	European CPR	Cca, according to EN 50575
Rated Temperature(C)	70	Certification	TUV/CE

—Dimensions—

The size from 1.5 mm² to 120mm² .

Construction	Conductor Construction	Conductor	Outer	Resistance Max	Current Carring Capacity
nxmm2	nxmm	mm	mm	Ω/Km	A
（16AWG)1×1.5	30×0.25	1.58	4.90	13.3	30
（14AWG)1×2.5	50×0.256	2.06	5.45	7.98	41
（12AWG)1×4.0	56×0.3	2.58	6.15	4.75	55
（10AWG)1×6	84×0.3	3.15	7.15	3.39	70
(8AWG)1×10	142×0.3	4.0	9.05	1.95	98
(6AWG)1×16	228×0.3	5.7	10.2	1.24	132
（4AWG)1×25	361×0.3	6.8	12.0	0.795	176
（2AWG)1×35	494×0.3	8.8	13.8	0.565	218
(1/0AWG)1×50	418×0.39	10.0	16.0	0.393	280
(2/0AWG)1×70	589×0.39	11.8	18.4	0.277	350
(3/0AWG)1×95	798×0.39	13.8	21.3	0.210	410
（4/0AWG)1×120	1007×0.39	15.6	21.6	0.164	480

—Packing For Shipment—

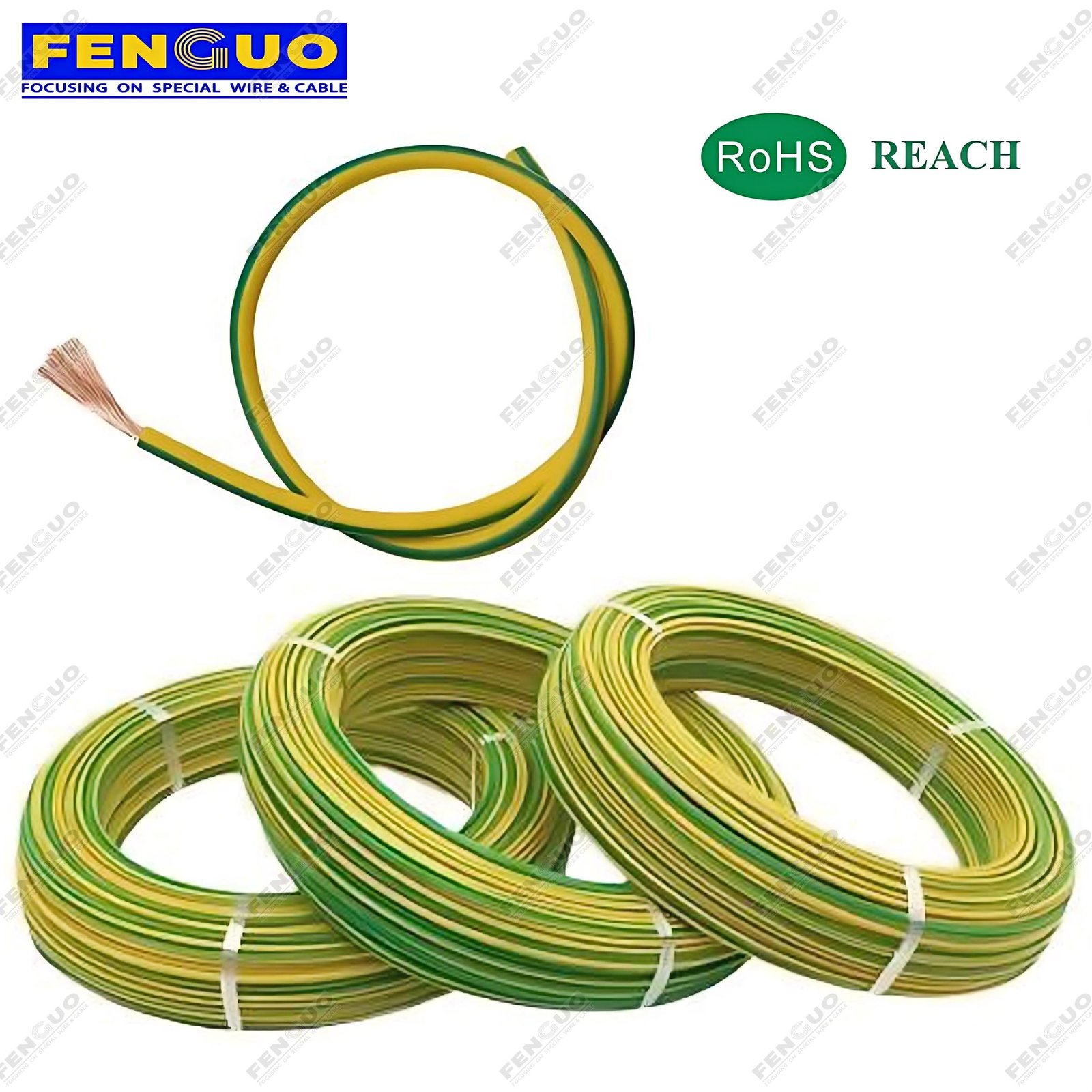

Multiple packaging methods, suitable for different transport conditions.

Packing picture	Packing/Meter	Pack Reel	Pallet Dimension(m)	Pallet/Meter
	100 Meter/Roll	/	1.12×1.12×1.04m	4mm2-14400m 6mm2-14000m
	200 Meter/Roll	/	1.12×1.12×1.04m	4mm2-16000m 6mm2-15200m
	100 Meter/Reel	plastic	1.12×1.12×1.04m	4mm2-12500m 6mm2-10000m
	500 Meter/Reel	Plywood	1.12×1.12×1.04m	4mm2-15000m 6mm2-10000m
	1000 Meter/Reel	Plywood	1.12×1.12×1.04m	4mm2-15000m 6mm2-12000m
	3000 Meter/Reel	Plywood	1.12×1.12×1.04m	4mm2-15000m 6mm2-12000m
