- Contact with drum-type crown spring, make electrical connection safety and fastness.
- Self-locking between the female and male connector, installation conveniently and reliably.
- Ratchet mechanism desigh to lock the nut cover, avoid being loosened after long term using.
- Contact resistance less than 0.35mΩ with Multi-Contact, less heating and low power consume.
- Strong ageing resistance and UV resistance, suitable for use in multiple harsh outdoor environments.
- It is suitable for various harsh outdoor environments such as deserts, lakes, seasides, and mountains.
It is an important part of the solar system. Good connection quality ensures the long-term and safe operation of the photovoltaic system and effectively reduces the failure rate of the photovoltaic system and the later operating costs.

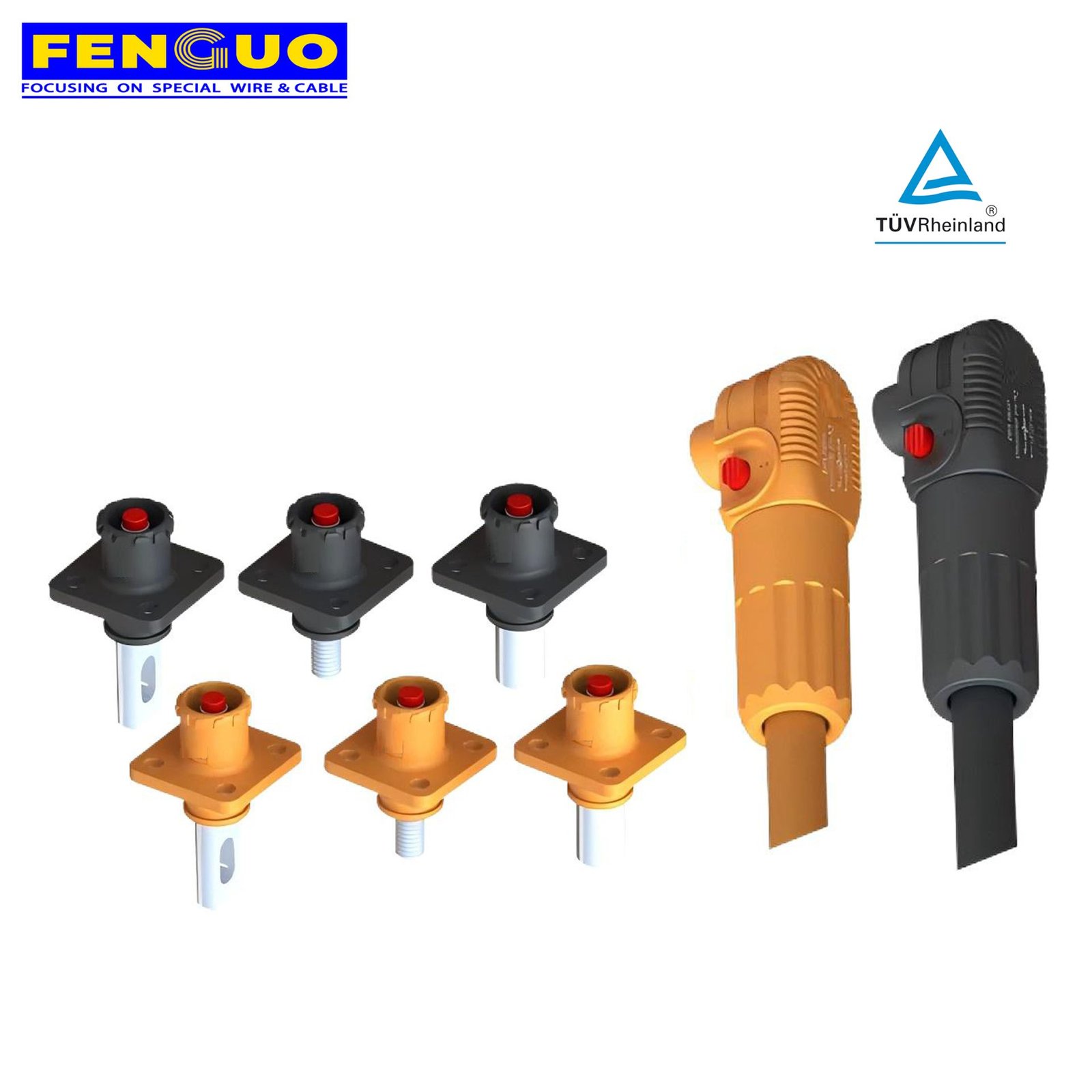

—Specification Of ES10 Series Energy Storage Battery Connector —
| Product NO. | ES10 M/F | Test voltage | 15KV（50Hz,1Min) |
| Insulation material | PA66 | Contact material | copper, tin-plated |
| Rated Voltage | TUV1500V/UL1500V | Contact resistance | less than 0.2 mΩ |
| Rated current-50mm2 | 250A（1AWG） | Degree of protection | IP68 |
| Rated current-70mm2 | 300A(2/0AWG） | Ambient temperature | -40℃ up to +125℃ |
| Rated Current-95mm2 | 350A（4/0AWG） | Certification | TUV/UL4128 |
—Drawing Of ES10 Series Energy Storage Battery Connector —
—Packing For Shipment—
—Our factory—
—FAQ—
Q1:l didn’t find my needed model in this page.
A1:We are factory. Ecatalog will emailed to you asap you contact us.Also, we supply customization service. So, contact us!
Q2:How long is your delivery time?
A2:Generally it is 5-10 days if the goods are in stock. or it is 15-20days if the goods are not in stock, it is according to quantity.
Q3:Can l see the sample first before l place the real order ?
A3:Of course. We can offer little sample for testing quality and market.
Q4:How about MOQ ?
A4:0ur company has MOQ requirement, but we also accept small quantity.
Q5:What is your terms of payment ?
A5:Payment<=1000USD,100% in advance.Payment>=1000USD, 30% T/T in advance ,balance before shippment.
