- Contact with drum-type crown spring, make electrical connection safety and fastness.
- Self-locking between the female and male connector, installation conveniently and reliably.
- Ratchet mechanism desigh to lock the nut cover, avoid being loosened after long term using.
- Contact resistance less than 0.35mΩ with Multi-Contact, less heating and low power consume.
- Strong ageing resistance and UV resistance, suitable for use in multiple harsh outdoor environments.
- It is suitable for various harsh outdoor environments such as deserts, lakes, seasides, and mountains.

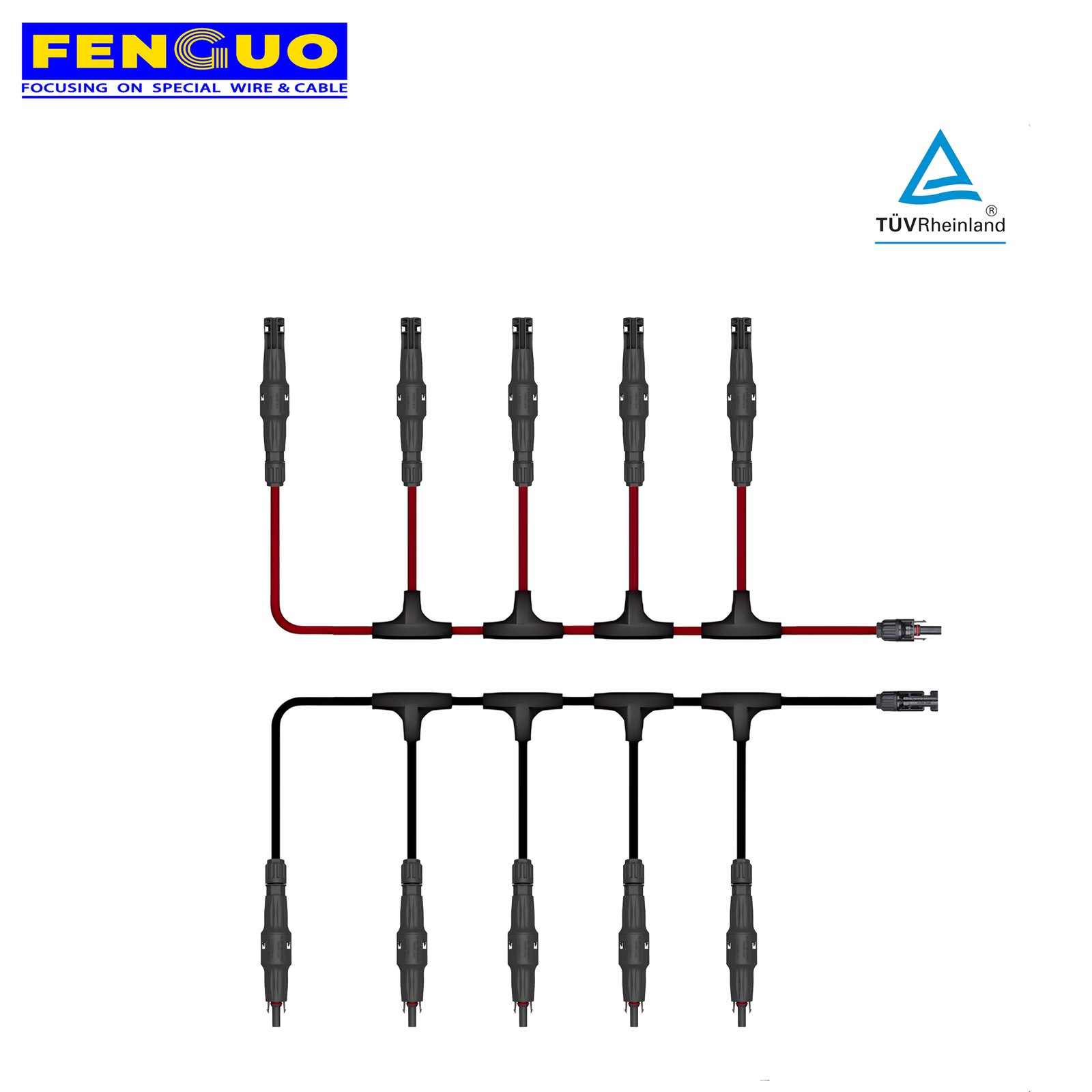

It is an important part of the solar system. Good connection quality ensures the long-term and safe operation of the photovoltaic system and effectively reduces the failure rate of the photovoltaic system and the later operating costs.
— Specification Of pv wiring —
| Insulation material | PPO/PC | Test voltage | 6KV(50Hz,1Min) |
| Rated Voltage | TUV1500V/UL1500V | Contact material | Copper, Tin-plated |
| Rated current-2.5mm2 | 35A（14AWG） | Contact resistance | Less than 0.35 m2 |
| Rated current-4mm2 | 40A（12AWG） | Degree of protection | IP68 |
| Rated Current-6mm2 | 45A(10AWG) | Ambient temperature | -40℃ up to +120℃ |
| Protection Class | Class Ⅱ | Certification | IEC62852/UL6703 |
— Drawing Of pv wiring —
—Packing For Shipment—
—Our factory—
—FAQ—
Q1:l didn’t find my needed model in this page.
A1:We are factory. Ecatalog will emailed to you asap you contact us.Also, we supply customization service. So, contact us!
Q2:How long is your delivery time?
A2:Generally it is 5-10 days if the goods are in stock. or it is 15-20days if the goods are not in stock, it is according to quantity.
Q3:Can l see the sample first before l place the real order ?
A3:Of course. We can offer little sample for testing quality and market.
Q4:How about MOQ ?
A4:0ur company has MOQ requirement, but we also accept small quantity.
Q5:What is your terms of payment ?
A5:Payment<=1000USD,100% in advance.Payment>=1000USD, 30% T/T in advance ,balance before shippment.
